2010 Case IH Magnum™ 210 Tractor
Request a Quote Financing Calculator Financing Form
Click here to view full image.

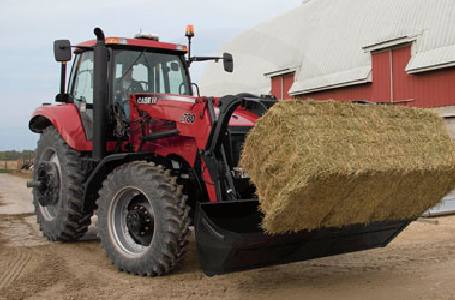

Magnum 180 Shown
Request a Quote Financing Calculator Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Case IH Magnum™ Series tractors combine advanced technology with customer input to give you unmatched productivity in row crop operations.


Engine


As acreage and implement sizes increase, productive power drives the decision to invest in a new tractor. Magnum™ tractors go to the field with three proven six-cylinder engines: High-pressure, common rail electronic fuel injection systems, Four valves per cylinder for improved fuel economy and power, Turbo-charged and air-to-air intercooled, Tier III certified, Approved for use with 100% biodiesel (B100) when proper Case IH maintenance programs are followed
Six-cylinder, 6.75-L (411-CID) Case IH engine powers the mid-range Magnum 180, 190 and Magnum 210.


Transmission


Each Magnum™ tractor features a proven 18-speed full Powershift transmission with electronically controlled Pulse Width Modulated (PWM) solenoid valves providing shuttle shift control and smooth shift quality.
Optional 19th gear is available in two configurations for transport fuel savings
Optional 23-speed with shift-through creeper
AutoShift™ standard on Magnum 180, 190, and 210 models


Hydraulics/Hitch/PTO


Magnum™ tractors feature a redesigned, high-powered hydraulic system, based on a single pressure and flow compensating (PFC) pump for high-capacity, quick response time and the flexibility to simultaneously perform several functions.


Magnum hitch geometry ensures well-balanced and stable operation.


Hydraulically activated, electronically controlled PTO system provides smooth modulation and component protection.


Cab/Controls


The Case IH Surveyor™ cab on Magnum™ tractors is the result of customer input from around the world.
Ultimate operator environment with panoramic curved glass; comfortable, positive response seat; and ergonomic armrest controls
Rated at 68.3 dBA, quieter than previous designs even with added horsepower
Four in. (101 mm) of added cab height improves visibility and serviceability and allows for greater fuel capacity


Service


Case IH makes maintaining Magnum™ tractors as simple as possible. All daily servicing is performed from ground level. While filling the fuel tank it’s simple to check:
Engine coolant
Engine oil
Hydraulic oil levels


On-board diagnostics and error codes are accessible through the standard instrumentation for speedy troubleshooting. Full system diagnostics can be performed by a Case IH dealer’s service technician on site with a laptop computer.

    Engine
    • PTO Horsepower at Rated RPM: 180 PTO hp @ 2200 RPM
    • Power Boost (Additional available HP during mobile PTO/hydraulics operation, or 16th gear & higher.): 25 hp
    • Cylinders/displacement/ Number of valves: 6/415 cu. in.(6.75 L)/24
    • Aspiration: Turbocharged/intercooled
    • Bio-Diesel Fuel (With approved Case IH maintenance practices.): Up to 100% (B100)
    Electrical
    • Alternator Std./Optional: 150 / 200 amp
    Transmission
    • 18 speed full power shift 18Fx6R: Standard
    • 19 speed full power shift 19Fx6R with 19th Economy Gear (25 mph/40 kph): Optional
    • 19 speed full power shift 19Fx6R (30 mph/50: Optional
    • Creeper speeds: Dealer-Installed Option
    • PTO (interchangeable shafts): 540/1000 rpm 1-3/8 in. (35 mm) shafts, and 1000 rpm 1-3/4 in. (44 mm) shaft
    Axles
    • Standard rear diameter: 4-1/8 in. (105 mm)
    • Rear axle length - Standard / Optional: 112 in. (2485 mm) / 119 in. (3020 mm)
    • Suspended Front Axle: Optional
    • MFD Tread Adjustability: 60 - 88 in. (1524-2235 mm)
    • Wheelbase (MFD): 118.3 in. (3005 mm)
    Hydraulic Specifications
    • Hydraulic Type: Pressure-flow compensating (PFC)
    • Remotes - Standard / Optional: 3/4/5 Electro-hydraulic
    • Main/Implement Pump Flow: 39.6 gpm (150 L/min)
    • 3-point Hitch Category: Cat II / III
    • Hitch Lift Capacity – Standard / Optional: 12,787 lbs. (5800 kg) / 15,873 lb. (7200 kg)
    • Mid-Mount Valve – Optional: 2 or 3 function
    Capacities
    • Fuel Tank: 118 gal. (446 l)
    • Engine oil with filter: 17 U.S. qt. (16 l)
    • Hydraulic Fluid: 26.5 U.S. gal. (100 l)
    Cab
    • Volume (Size): 109.5 cu. ft. (3.1 m3)
    • Glass: 68.5 sq. ft. (16.4 m2)
    Shipping Weights & Dimensions
    • Weight with Standard MFD Axle (With 380/85R34 front and 480/80R46 rear tires.): 18,200 lb. (8250 kg)
    • Weight with Suspended Front Axle (With 380/85R34 front and 480/80R46 rear tires.): 19,000 lb. (8600 kg)
    • Height to Top of Cab (With 380/85R34 front and 480/80R46 rear tires.): 128.5 in. (3265 mm)
    Case IH 6.75-Liter Engine
    • Rated engine working speed of 2,200 rpm
    • Full-authority, four-valve, common-rail, electronic fuel injection system
    Power Boost to handle fields with steep grades or tough crop conditions in transport, PTO and hydraulic modes on an as-needed basis
    • 25 hp (18.6 kW) Power Boost for Magnum 210
    18 x 4 Powershift Transmission
    • Eight speeds in the working range of 3 to 8 mph (4.9 to 12.9 kph)
    • 14% speed change between gears
    • Start in any gear up through 12th
    • Electronically controlled Pulse Width Modulated (PWM) solenoid valves, for shuttle shift control and smooth shift quality
    • Proven reliability and durability for a long, dependable service life
    18 x 6 Full Powershift Transmission
    • Standard
    • AutoShift™
    • Shuttle shifting
    • Speed matching
    • Starts in 7th gear unless operator overrides
    • Approximately 19.4% speed change between gears
    19-Speed and 23-Speed Options
    • 19th gear option in one of two configurations
    • A fuel-saving economy gear for excellent transport fuel economy in a 25-mph version
    • When roading long distance has shown fuel savings of 11%
    • A 30-mph option that reduces travel time between fields
    • Optional creeper adds five forward and two reverse speeds
    • Ideal for slow speed specialty situations like potato or vegetable crop work
    Front Axle
    • Standard MFD drive axle featured on Magnum™ 180 - 210 (10-bolt hub)
    Optional MFD suspended axle works with both mounted and drawbar implements, is less complex than competitive designs and
    • Reduces operator fatigue
    • Reduces implement stress
    • Improves stability at faster transport speeds
    • Improves traction efficiency in the field
    PTO
    • With the Magnum 180, 190 and 210, an independent 540/1,000 rpm PTO with a soft-start and coast down feature is standard
    • Following interchangeable shafts come standard on the Magnum 180 - 210 models
    • 540 rpm, 1 3/8-in. (35-mm) shaft
    • 1,000 rpm, 1 3/8-in. (35-mm) shaft
    • 1,000 rpm, 1 3/4-in. (44-mm) shaft
    Service Ease
    • Single-piece sloped hood flips up, powered by gas struts, to give access to:
    • Engine
    • Air cleaner
    • Radiator
    • Hydraulic oil cooler
    • Easy access to the air-to-air cooler and radiator
    • Cab air filter is located below the cab door and can be serviced from ground level without tools
    • Engine air filter is accessible from the ground, making regular cleaning and replacement easy
    • Batteries are conveniently located on the right-hand side of the tractor
    • Remove thumb screw covers for quick access to batteries without the use of tools
    • Extended oil change intervals save time and money
    • Standard removable toolbox is located on the right-hand side of the cab
    • Optional performance instrumentation detects critically high temperatures or low oil pressure and automatically shuts down the engine to prevent damage.
    • It also displays service reminders for:
    • Engine oil and filter
    • Engine air filter
    • Battery
    • Coolant flush
    • Transmission oil and filter
    • Fuel filter
    • Coolant filter
    • Hydraulic flow
    Hydraulics
    • Main implement pump flow: Magnum 180 - 210 at 39.6 gpm (150 Lpm)
    • Three electro-hydraulic remotes are standard; two optional valves can be added
    • Remote quick couplers
    • Optional power beyond includes supply and return couplers, load sense and case drain
    • Five-position mode remote lever controls are set from the right-hand control console – orbital motor, loader, full function, no float and lock
    • Programmable valve timer
    • Optional Performance Instrumentation, individual valve timers allow the operator to tailor the hydraulic circuits to meet implement requirements
    • New Magnum 180 - 210 can be equipped with up to three mid-mount valves for easy loader installation
    Deluxe and Luxury Cab Options
    • Cab interior has 13% more space than most competitive models
    • Plenty of leg room
    • Cab layout combined with 68.5 sq. ft. (6.3 sq. m) of glass provides outstanding sightlines
    • 10% more glass than most competitors for 360-degree panoramic views
    • Deluxe or luxury (Surveyor) cab editions featuring:
    • Automatic temperature control
    • Tilt steering wheel
    • Six power outlets
    • Ample storage
    • Large workstation to the left of the seat holds papers, a laptop computer or other items
    • Additional instructional seat available to accommodate operators in training (standard on all luxury cabs)
    • Lighting to complement after-dark work hours and implement needs
    • 150-amp alternator standard, 175-amp optional
    • Center grille-mounted High Intensity Discharge (HID) lamp lights the marker trail up to 350 ft. (105 m) ahead
    • Optional 360-degree work lamp package includes three front HID lamps, two rear fender HID lamps, two halogens mounted on the side of the roof and egress lighting
    Several Seat Options
    • Optima™ seats in deluxe or luxury cabs feature:
    • Adjustable ride firmness
    • Lumbar support
    • Backrest angle
    • Float isolators
    • Swivel 20-degree right, 13-degree left with free swivel or four right- and two left-locking positions
    • Left armrest height and tilt adjustments
    • Heated seats with on/off cycle
    • Red leather bucket seat in luxury cab; soft fabric contoured cushion seat in deluxe cab
    • Positive-Response™ Suspension reacts up to 500 times per second to insure smooth ride in rough terrain
    • Standard with luxury cab, optional with deluxe
    Controls
    • The right-hand controls in all Magnum models include:
    • Speed, direction, hydraulics, hitch, PTO and end-of-row switch all within easy reach
    • Programmable end-of-row function
    • Integrated gear/throttle control handle
    • Armrest is integrated with the seat so that as it swivels, raises or lowers, moves forward or backward, the controls stay in position with the operator’s arm
    • Optional performance instrumentation added to A-post makes even more information available:
    • Wheel slip
    • Distance traveled
    • Acres covered
    • Hydraulic flow settings
    • Magnum 215 - 335 also supply readings for percentage of power usage, fuel consumption and fuel quantity on board
    • AFS AccuGuide™ Ready option for full Case IH AFS® precision farming capabilities
    • AFS Pro 600 color display option to manage autoguidance

    Specifications

    Engine
    Engine Type 6 Cylinders
    PTO HP 180 PTO hp @ 2200 RPM
    Specifications
    Wheelbase 118.3 in. (3005 mm)
    Height 128.5 in. (3265 mm)
    Weight 18,200 lb. (8250 kg)
    General
    Fuel Capacity 118 gal. (446 l)
    Transmission 18 speed full power shift 18Fx6R: Standard; 19 speed full power shift 19Fx6R with 19th Economy Gear (25 mph/40 kph): Optional; 19 speed full power shift 19Fx6R (30 mph/50): Optional
    Hydraulics Pressure-flow compensating (PFC)

    Compare Models

    		 Print








    Year 2010
    Manufacturer Case IH
    Model Magnum™ 210 Tractor
    Style Utility
    Engine
    Engine Manufacturer
    Engine Type 6 Cylinders
    Horsepower
    PTO HP 180 PTO hp @ 2200 RPM
    Rated RPM
    Bore and Stroke
    General
    Fuel System
    Fuel Capacity 118 gal. (446 l)
    Transmission 18 speed full power shift 18Fx6R: Standard; 19 speed full power shift 19Fx6R with 19th Economy Gear (25 mph/40 kph): Optional; 19 speed full power shift 19Fx6R (30 mph/50): Optional
    Brakes
    Hydraulics Pressure-flow compensating (PFC)
    Drive Type
    Specifications
    Wheelbase 118.3 in. (3005 mm)
    Height 128.5 in. (3265 mm)
    Width
    Weight 18,200 lb. (8250 kg)
    Ground Clearance
    Tire Size
