2010 Case IH Puma™ 155 Tractor

Request a Quote

Financing Calculator

Financing Form

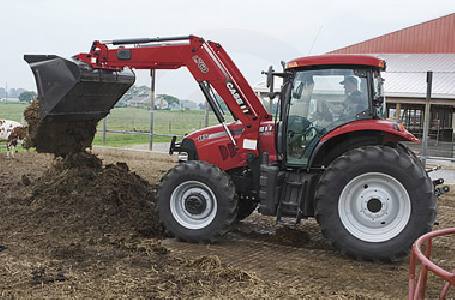

Puma 115 Shown

Request a Quote

Financing Calculator

Financing Form

OEM Overview
Specifications
Compare Models
Current Promotions

Overview

Print Brochure

Case IH Puma™ Series tractors are ideal for utility, livestock and mid-sized cash grain operations.

Engine

Field proven, responsive six-cylinder, 6.75-L (411-CID) Case IH Puma™ engines are efficient, quiet and durable.

Full-authority, four-valve, common-rail, electronic fuel injection system provides maximum efficiency for the lowest possible operating costs.

Power Boost provides extra power for mobile PTO and hydraulic applications, and during roading.

Transmission/Front Axle

Full Powershift transmission with automatic shifting is standard on all models.

Optional 19th EconoGear™ economy transport gear reduces engine speed in 19th gear for additional improved fuel economy at top road speeds.

All Puma tractors feature a standard heavy-duty MFD axle.

Hydraulics/Hitch/PTO

The high-flow hydraulic system handles varied hydraulic demands and is adapted to the requirements of today’s: Loaders, Implements, Remote hydraulic motors
A Cat. II/IIIN 3-point hitch has up to a 12,185 lb- (5,527-kg) lift capacity in the larger Puma™ models, with a 15,837-lb (7,200-kg) option.
The high-capacity, closed-center pressure-flow compensating hydraulic system includes a main implement pump and a separate 17-gpm (66-Lpm) steering and services pump.
15,197-lb. or 6,893-kg hitch lift capacity on the SWB models for loads generated by larger implements
Standard rear fender-mounted hitch raise/lower switches for easy positioning of the hitch from the ground.

Cab/Controls

The 58.7 sq. ft. (5.3 sq. m) of glass wrapping the Puma™ SurroundVision™ cab provides outstanding sight lines, while the cab size and layout create an environment that encourages productivity.
Adding to operator efficiency are: Power Shuttle, End-of-row function, Turn Assist

Service

Simple Puma™ servicing reduces downtime and lowers cost of ownership by making access to maintenance points convenient – even with a front loader installed.

All service points are centrally located to save even more time. Serviceability is improved through features including: Easy-opening hood, Convenient service steps and cab service access doors.

Extended 600-hour engine oil filter/drain service interval lowers maintenance costs and saves time.e interval lowers maintenance costs and saves time.

Engine

Rated PTO horsepower : 135 hp
Rated full load RPM: 2,200 rpm
Cylinders/Displacement: 6/411 cu. in. (6.75 l)
Number of Valves: 24
Aspiration: Turbocharged and Air to Air

Electrical

Standard alternator: 120 amp/12 volt
Battery capacity (1 battery): 960 CCA

Transmission

18 speed full power shift 18F-6R 25 mph (40 kh): Standard
19 speed full power shift 19F-6R 30 mph (50 kh): Optional
Creeper with additional 10F/6RI: Optional
PTO - Standard: 540/1000 rpm, 1-3/8 in. (35 mm)

Axles

Flange Axle: Standard
Rear diameter bar axle - Optional: 3-5/8 in. (92mm)
Rear axle length - Standard/Optional: 98 in. (2489 mm)/112 in. (2845 mm)
Suspended front axle option: Optional
MFD tread adjustability: 61.8 - 89.2 in. (1570 - 2266 mm)
Wheelbase - standard front axle: 107.8 in. (2739 mm)
Wheelbase - suspended front axle: 109.7 in. (2786 mm)

Hydraulics

Hydraulic type: Closed Center, Pressure Flow Compensating
Remotes - Standard/Optional: 2 mechanical/2-4 electronic
Main/Implement pump flow: 26.5 gpm (100 l/min)
Steering and services pump flow: 17 gpm (65 l/min)
Tractor hydraulic total flow: 43.7 gpm (165 l/min)
3-point hitch category: II/IIIN(
Standard hitch capacity - 90 mm ext. cylinders: 12,185 lbs. (5527 kg)
Optional hitch capacity - 100 mm ext. cylinders: 15,197 lbs. (6893 kg)

Capacites

Fuel Tank: 79 gal. (300 l)
Engine Oil: 16 qt. (15 l)
Hydraulic fluid: 19.6 gal. (75 l)

Cab

Glass: 58.7 sq. ft (5.45 m2)
Sound Level: 71 dba

Estimated Shipping Weight

Std MFD w/ 18.4R38 less ballast: 13,669 lbs. (6200 kg)
Height to top of cab, 18.4R38: 118.3 in. (3005 mm)

Case IH 6.75-Liter Engine

Rated engine working speed of 2,200 rpm
Turbocharged and air-to-air intercooled
Four valves per cylinder
Improved fuel economy and power
Tier III certified
Up to 35 hp (26.1 kW) Power Boost in select Puma models
Move through tough crop conditions without losing productivity
Handle steep grades without losing speed
Rated for up to 100% biodiesel blend (B100) when approved Case IH maintenance procedures are followed

18 x 6 Full Powershift Transmission uses a patented torque-sensing system on the tractor flywheel to measure

Engine speed
Transmission torque loading

18 x 6 Full Powershift Transmission improves efficiency and reduces fuel consumption by changing speed depending on

Engine rpm
Transmission loading
Forward speed

Standard AutoShift™ setting for both field operation and road speeds provides automatic shifting based on load

Auto Field mode shifts up or down automatically based on engine speed and driveline torque
Auto Road mode shifts sequentially through the top seven gears so the shift pattern corresponds to engine torque and throttle position

A suspended front axle (Puma 115 - 155)

Uses automatic self-leveling and controlled shock dampening technology for superior ride and traction

The standard main implement pump delivers up to

26.5 gpm (100 Lpm) for the standard wheelbase (SWB) Puma 115 - 155
Total flow equals 43.5 gpm (166 Lpm) for SWB models

New hydraulic remote valves increase flow at the remotes

Three or four standard mechanical remotes with selectable detents
Or up to five optional electro-hydraulic remotes
Up to four available on SWB models
Hydraulic mode switches can be tailored to a specific configuration
New optional rear-fender-mounted control switch allows handy activation of a frequently used hydraulic circuit (No. 1) from a conveniently accessible ground-level location

Cat. II/IIIN 3-point hitch features

Standard wheelbase (SWB) Puma 115 - 155 feature a 12,185-lb. (5,527-kg) lift capacity

Standard 540/1,000-rpm PTO features soft-start modulation protection and an interchangeable 1 3/8-in. (35-mm) shaft

6-spline, 540 rpm
21-spline, 1,000 rpm
Optional on the Puma 165 - 210 is a 1,000-rpm PTO with 1 3/4-in (44 mm), 20-spline shaft

Auto PTO Management option automatically turns the PTO on or off at a predetermined height of the 3-point hitch

Reduces operator effort
Protects PTO driveline components
Front hitch and PTO option increases versatility and productivity

The SurroundVision cab is loaded with standard features to make operators more efficient and comfortable

58.7 sq. ft. (5.45 sq. m) of cab glass
Deluxe air-ride seat
Adjustable armrests for outstanding comfort
Standard tilt and telescoping steering column
Custom fit each operator
Digital instrument center on the cab right-hand "A" post
Standard lighting package for safe nighttime operation
Six front/four rear for standard wheelbase (SWB) models

Cab Options

Unique high-visibility roof panel for sight-line to raised bucket
The panel opens to provide ventilation
Equipped with a sliding internal cover to completely close off the window
Suspended cab for ultra-smooth ride
Heated for the ultimate operator comfort
A full-size training seat with backrest to the left of the operator
Rear cab storage – an extra compartment to the rear left side of the operator’s seat for personal items, phones or implement manuals
Automatic climate control
Electric mirrors to help spot grain carts, harvesters and other action

A single-piece, flip-up hood provides full access to

Engine
Air cleaner
Air conditioner condenser
Hydraulic oil cooler
Air-to-air intercooler

More features to make service easy

Swing out coolers and radiator
A large front toolbox
Placed above the engine starter on the right-hand side for easy connection
A single Poly-Vee belt drives the fan, alternator and water pump, reducing the number of belts, improving reliability and simplifying maintenance

Specifications

Engine
Engine Type	6 Cylinders
PTO HP	135 hp
Rated RPM	2,200 rpm
Specifications
Wheelbase	107.8 in. (2739 mm)
Height	118.3 in. (3005 mm)
Weight	13,669 lbs. (6200 kg)
General
Fuel Capacity	79 gal. (300 l)
Transmission	18 speed full power shift 18F-6R 25 mph (40 kh): Standard; 19 speed full power shift 19F-6R 30 mph (50 kh): Optional
Hydraulics	Closed Center, Pressure Flow Compensating

Compare Models

Engine

Year	2010
Manufacturer	Case IH
Model	Puma™ 155 Tractor
Style	Utility
Engine Manufacturer
Engine Type	6 Cylinders
Horsepower
PTO HP	135 hp
Rated RPM	2,200 rpm
Bore and Stroke
General
Fuel System
Fuel Capacity	79 gal. (300 l)
Transmission	18 speed full power shift 18F-6R 25 mph (40 kh): Standard; 19 speed full power shift 19F-6R 30 mph (50 kh): Optional
Brakes
Hydraulics	Closed Center, Pressure Flow Compensating
Drive Type
Specifications
Wheelbase	107.8 in. (2739 mm)
Height	118.3 in. (3005 mm)
Width
Weight	13,669 lbs. (6200 kg)
Ground Clearance
Tire Size
