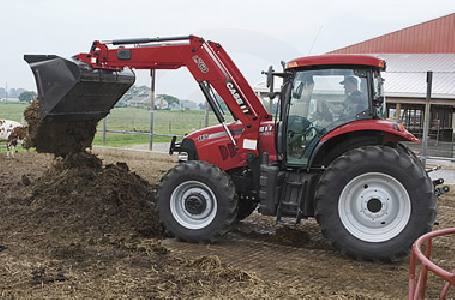

Case IH Puma™ Series tractors are ideal for utility, livestock and mid-sized cash grain operations.


Engine


Field proven, responsive six-cylinder, 6.75-L (411-CID) Case IH Puma™ engines are efficient, quiet and durable.
Full-authority, four-valve, common-rail, electronic fuel injection system provides maximum efficiency for the lowest possible operating costs.
Power Boost provides extra power for mobile PTO and hydraulic applications, and during roading.


Transmission/Front Axle


Either transmission option makes it easy to operate Puma™ tractors at maximum speed and efficiency: Full Powershift transmission with automatic shifting is standard on all models except the Puma 225, CVT optional on the Puma 165 - 210, CVT models feature the DieselSaver™ Auto Productivity Management (APM) system for outstanding fuel economy


Optional 19th EconoGear™ economy transport gear reduces engine speed in 19th gear for additional improved fuel economy at top road speeds.


CVT delivers unprecedented levels of fuel efficiency at all working speeds, from creep through top road speeds. Advanced design adapted from more than a decade of Case IH CVT engineering expertise in Europe, adapted specifically for North American producers.


Active Stop Control, standard with CVT, reduces operator effort through easier starts and stops on inclines in the field and on the road – without the need to clutch.


All Puma tractors feature a standard heavy-duty MFD axle


Hydraulics/Hitch/PTO


The high-flow hydraulic system handles varied hydraulic demands and is adapted to the requirements of today’s: Loaders, Implements, Remote hydraulic motors
A Cat. II/IIIN 3-point hitch has up to a 12,185 lb- (5,527-kg) lift capacity in the larger Puma™ models, with a 15,837-lb (7,200-kg) option.
The high-capacity, closed-center pressure-flow compensating hydraulic system includes a main implement pump and a separate 17-gpm (66-Lpm) steering and services pump.
Optional 15,873-lb. (7,200-kg) hitch lift capacity on LWB models for loads generated by larger implements (15,197-lb. or 6,893-kg on the SWB models)
Standard rear fender-mounted hitch raise/lower switches for easy positioning of the hitch from the ground.


Cab Controls


The 58.7 sq. ft. (5.3 sq. m) of glass wrapping the Puma™ SurroundVision™ cab provides outstanding sight lines, while the cab size and layout create an environment that encourages productivity.
Adding to operator efficiency are: Multi-Control™ armrest (Puma 165 - 225), Power Shuttle, End-of-row function, Turn Assist
It builds on the ergonomic Magnum™ and Steiger® controls concept featuring an integrated gear/throttle control handle in the latest generation of Case IH control technology.


Service


Simple Puma™ servicing reduces downtime and lowers cost of ownership by making access to maintenance points convenient – even with a front loader installed.


All service points are centrally located to save even more time. Serviceability is improved through features including: Easy-opening hood, Convenient service steps and cab service access doors


Extended 600-hour engine oil filter/drain service interval lowers maintenance costs and saves time.
